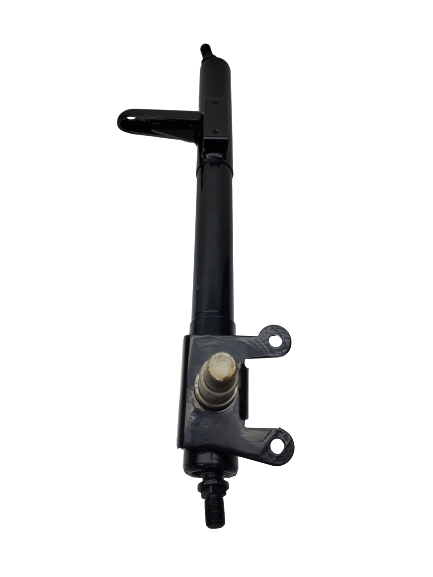

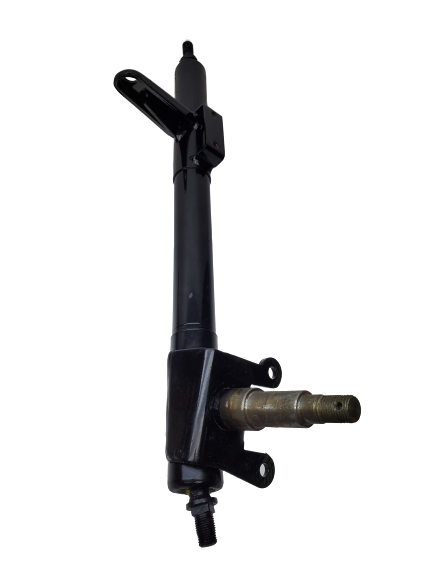

Twister Hammerhead Go Kart Spindle Strut – 3.5″ Axle, 150cc, 250cc (Driver Side-Left)
$71.35
Available on backorder
ABOUT BDX PERFORMANCE
BDXP is the leading USA technical expert in the Chinese vehicle off road market. Our engineers and technicians have helped thousands of people in the past twenty years keep their vehicles running. We have a full machine shop where we manufacture performance parts and engines to get maximum performance out of your vehicle.
DESCRIPTION
The Twister Hammerhead Go-Kart Spindle Strut with a 3.5″ Axle is designed for 150cc and 250cc models, providing optimal support for the driver side (left) suspension. This spindle strut assembly combines a sturdy strut with a precisely engineered spindle and 3.5″ axle, ensuring excellent stability and smooth operation on rough terrain. It offers long-lasting reliability and enhances overall handling and control during rides. Perfect for both replacements and upgrades, this driver-side spindle strut improves the performance and safety of your Twister Hammerhead go-kart, ensuring a smoother and more responsive driving experience. Easy to install for maintaining or upgrading your go-kart’s suspension system.
One Year Warranty
Guaranteed Fit for Twister Hammerhead – 536-1003 (not the early models-measure your axle length)
17″ Drivers side Go Kart Strut – Spindle Assembly with 3.5″ Axle (19 inches from tip of ball joint to tip of other ball joint)
- Measure your axle. Some models take the 4.5 inch axle. This spindle assemble will work on those vehicle but you will need to replace the bearings in your hubs with this bearings kit or replace your hubs with this one.
Included
- One Driver Side Spindle
WARRANTY: Warranty applies to premature failure due manufacturing defects. Does not apply to normal wear and tear nor misuse.
GUARANTEED FIT FOR THE FOLLOWING VEHICLES
- Carter Talon 150cc (not 250cc)
- Blazer- 2010028250GH01-2010027250GH01
- American Sportsworks
-
TrailMaster – 2.000.028-2.000.027 150cc, 250cc and 300cc go-karts
- Fits TrailMaster 150 XRS, 150 XRX and 300 XRX go-karts.
- And others see measurements
Does Not Fit
- Yerf Dog
- Blade
- Kinroad
- Crossfire
- Kandi
SPECIFICATIONS
- Length 19.5″ tip of ball joint to tip of ball joint (17″ not including ball joints)
- Spindle bolt 3.5″
- Spindle shaft Inner bearing surface 20mm or .78″
- Spindle shaft Outer bearing surface 15mm or .58″
- Spindle shaft thread size 14mm
- Brake caliper mounting hole distance 63mm or 2.5″
- Fender bracket mounting hole distance 41mm or 1.6″
- Ball Joint thread size 12mm 1.25
- 2.000.005 2.000.028-SS 2.000.028 501104 BD_426
| Weight | 1.134 lbs |
|---|
