Tomberlin Crossfire 150R Replacement Engine Kit

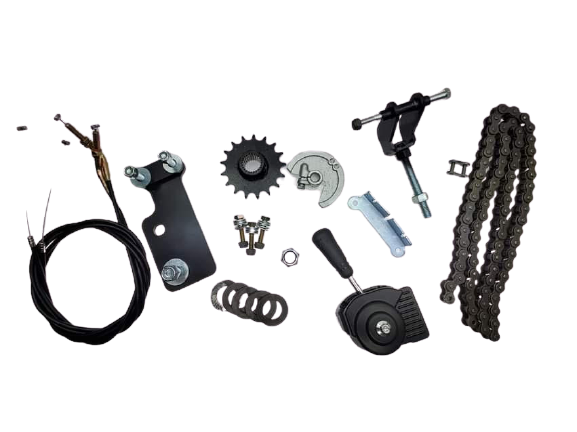

This package includes the everything needed to bolt up your new Crossfire 150R or Baja replacement engine to you Crossfire.  It includes:

• A reverse shifting package (2 cables, shifter handle, shifter cam, bracket, bolts,
• 14T Sprocket 19 Spline
• Chain tensioner
• Drive Shaft Locking Nut
• Spacer 5x
• Small drive shaft spacer 1x
• Mounting plate for rear of engine
• 59 Link Single Row Chain and master link
• Gear shift unit
• Bracket
• Hardware

You will be using a single row chain which is what virtually all other buggies use. And will be using only one side of the sprocket on your Axle.

Kit Installation Instructions:

• Bolt mounting plate provided to the top rear of the swing arm.
• Use the rear engine mount/chain tensioner to mount the rear of the engine.
• You’ll need to space over your axle sprocket using the four grade 8 bolts and washers provided.  Add or remove washers to align the two sprockets.
• You will install a new forward-reverse shifting system.
• You will need to space over your engine sprocket using the large spacers provide.  Add or remove spacers to align the two sprockets.
• Tighten chain as necessary.
