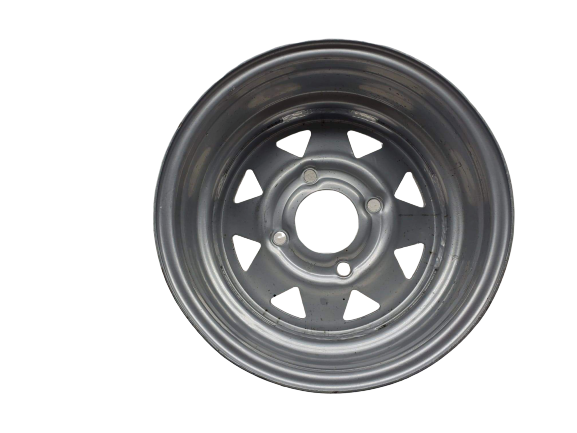

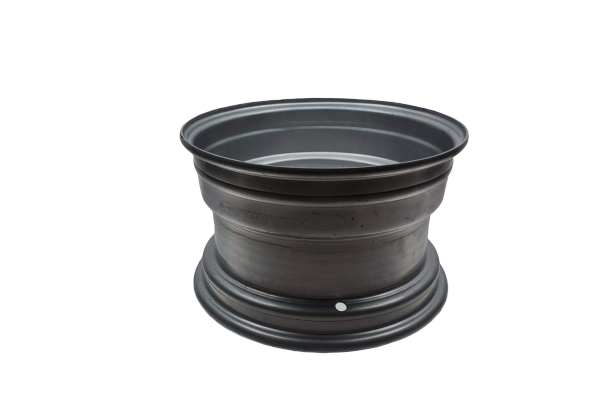

12″x7″ ATV UTV Rim 117mm Bolt Pattern

ABOUT BDX PERFORMANCE

BDXP is the leading USA technical expert in the Chinese vehicle off road market. Our engineers and technicians have helped thousands of people in the past twenty years keep their vehicles running. We have a full machine shop where we manufacture performance parts and engines to get maximum performance out of your vehicle.

DESCRIPTION

12×7 inch ATV Rim.  For tires where the last number is 12 for example 25x10x12.

The 12″x 7″ ATV/UTV Rim with a 117mm Bolt Pattern is designed to enhance the performance of ATVs and UTVs. With a 12-inch diameter and 7-inch width, this rim offers a wide, stable base for tires, providing superior traction and control in rough and uneven terrains. The 117mm bolt pattern ensures compatibility with a wide range of vehicles and allows for easy installation. The rim is built to withstand harsh off-road conditions, offering resistance to wear, corrosion, and damage.

GUARANTEED FIT FOR THE FOLLOWING VEHICLES

The following ATV’s use a 12″ rim with a 117mm bolt pattern.  Check the offset against specifications below, to make sure that it fits your vehicle.

• Suzuki
• Polaris
• Yamaha
• Massimo
• CFmoto
• Honda
• Can-am
• And other larger ATVs and UTVs

Also fits some

• Buggies,
• Go-Carts,
• UTVs
• Side-by-sides

SPECIFICATIONS

• Bolt pattern is 117mm (measured across the center of the hole)
• Width 7 inches from tire bead location to bead location (where the tire sits)
• Diameter 12 inches from tire bead to bead location (where the tire sits)
• Off-set 3.5 inches from the outside of the rim.
